JGHX High Voltage Suspension Cable Fixing Clamp
Product Overview
The JGHX High Voltage Suspension Cable Fixing Clamp is a specialized power line hardware designed for critical hardware component for overhead power line construction, ensuring reliable mechanical and electrical performance. Widely recognized in the industry under alternative names including line fitting, overhead hardware, power fitting, line hardware, this product serves as a critical component in overhead power transmission and distribution systems systems. The product is made of high-strength anti-corrosion aluminum alloy material, used for fixing cables, its hanging plate is connected with tensioning steel wire rope, the fixing and clamping structure is compact and reasonable, easy to install, and does not damage the cable. Specifications and Technical Parameters
Advantages
- “Precision manufacturing” — CNC machining and forging processes ensure dimensional accuracy and consistent quality
- “Durable surface treatment” — hot-dip galvanizing per ISO 1461/ASTM A153 provides long-term corrosion protection
- “High mechanical strength” — designed to withstand rated breaking loads with appropriate safety margins
- “Standardized interfaces” — compatible with common insulator, conductor, and support hardware specifications
- “Field-proven reliability” — tested per IEC/GB standards for mechanical and electrical performance
Technical Parameters

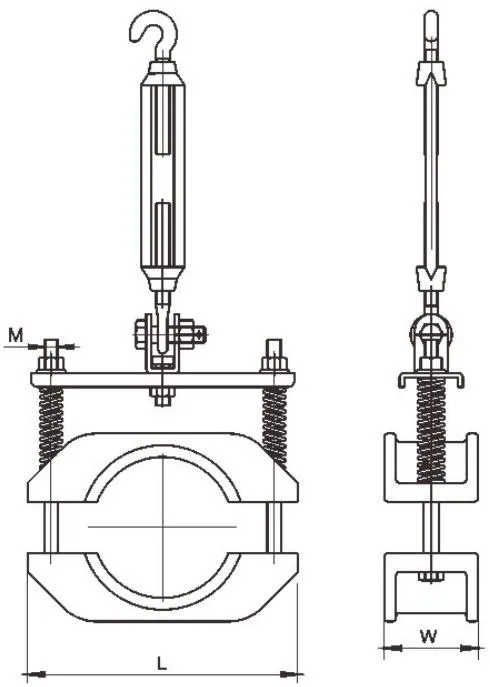

| Model | Applicable Cable Outer Diameter | Main Dimensions (mm) | ||
|---|---|---|---|---|
| L | W | M | ||
| JGHX-1 | 80~100 | 180 | 70 | 12 |
| JGHX-2 | 100~120 | 200 | 70 | 12 |
| JGHX-3 | 120~136 | 210 | 70 | 12 |
| JGHX-4 | 136~150 | 230 | 80 | 12 |
| JGHX-5 | 150~160 | 250 | 80 | 12 |
Note: Made of high-strength aluminum alloy, no magnetic hysteresis loss. Adopting screw pressing structure, easy to install. Added spring design, reducing cable thermal expansion and contraction stress damage. ◆ Added rubber pad, obvious insulation effect, and protects cables from damage. Dimensions may vary slightly based on manufacturing tolerances. Contact our engineering team for custom sizes or special requirements.
Material & Manufacturing
- Material: high-quality carbon steel, cast iron, or aluminum alloy
- Secondary components: hot-dip galvanized finish
- Surface treatment: Hot-dip galvanizing in accordance with ISO 1461 / ASTM A153 / IEC 61589, minimum zinc coating thickness 65 μm
- Manufacturing process: Precision forging, casting, or CNC machining of critical dimensions, followed by full galvanizing immersion. Dimensional accuracy controlled within ±0.5 mm tolerance on mounting interfaces
- Quality assurance: Every batch undergoes dimensional inspection, galvanizing thickness testing (magnetic or gravimetric method per ISO 2178), and visual surface examination. Mill test certificates (MTC) available upon request
Application Scope
- Critical hardware component for overhead power line construction, ensuring reliable mechanical and electrical performance
- Overhead transmission and distribution line construction
- Power grid upgrade and renovation projects
- Industrial and utility pole hardware assembly
Frequently Asked Questions
Q: What materials are used? A: Depending on the product type, materials include carbon steel, malleable cast iron, forged steel, cast aluminum alloy, or copper alloy. All components have hot-dip galvanized or equivalent corrosion protection.
Q: Are custom sizes available? A: We offer non-standard sizes and custom specifications for special project requirements. Contact our engineering team with your drawings or specifications.
Q: What quality certifications do you have? A: Products are manufactured under ISO 9001 certified quality management system. Mill test certificates (MTC) and third-party inspection reports are available upon request.
